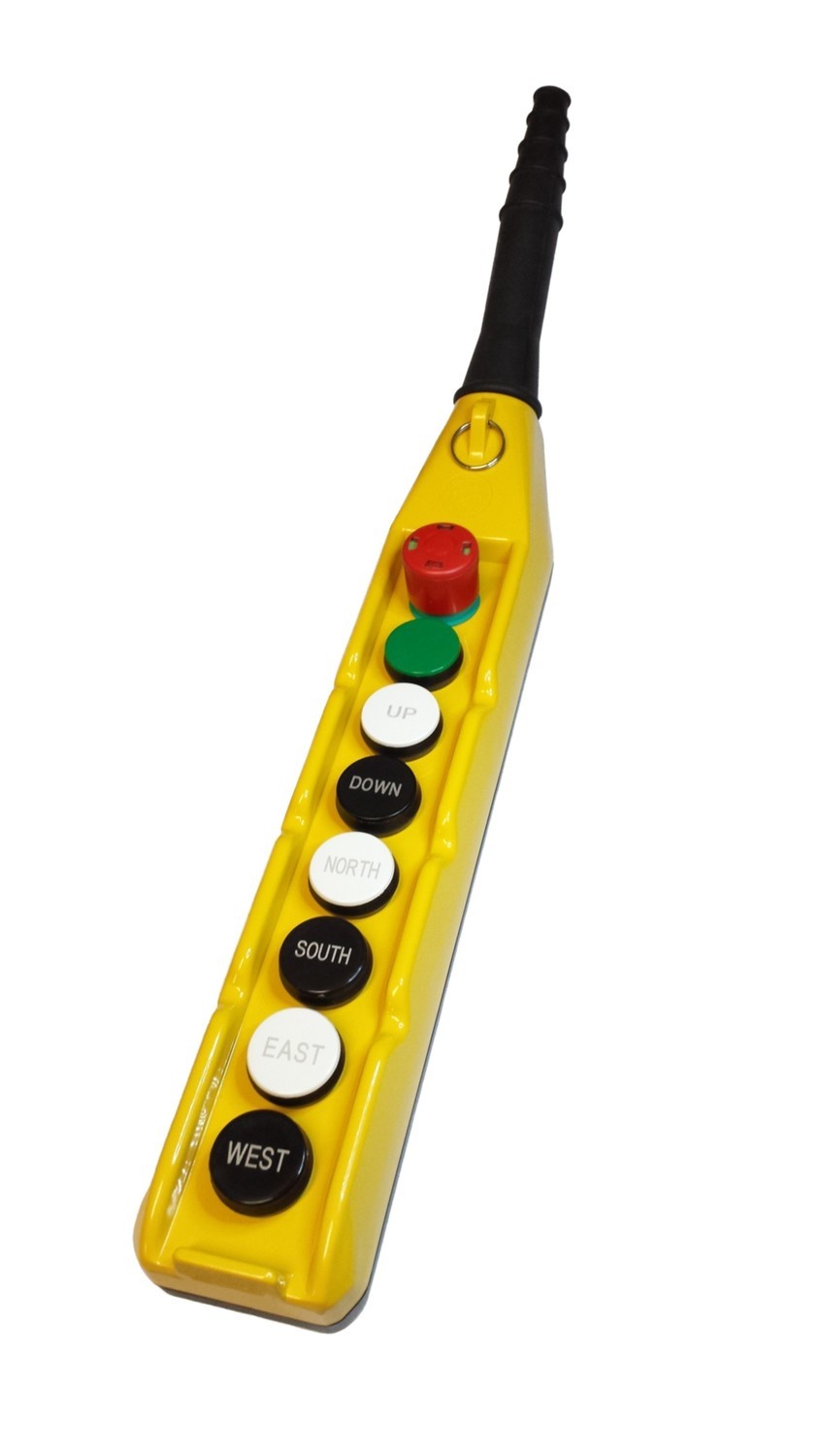

Pendant to suit standard overhead travelling crane with 2 speeds all motions and Start/Horn button

• Emergency-Stop (2 x NC Contacts)
• 2 Speed Buttons
  • UP
  • DOWN
  • NORTH
  • SOUTH
  • EAST
  • WEST
• 1 speed button
  • Blank Green
• Mechanical Interlocks Fitted (removable)
  • Up-Down
  • North-South
  • East-West

Our PL series pendants feature:

• Easy wiring and installation
• Possible to mount a total of 3 contact blocks per button
• Rugged double-insulated enclosures in self-extinguishing thermoplastic
• Sealed to IP65
• Standard click-on contact blocks - up to 3 contacts per button
• Contacts with 16A (thermal) rating, 690V insulation voltage
• NO contacts are slow-break, double-gap, self-cleaning
• NC contacts are positive break so suitable for Emergency-Stop use (EN418 etc)
• AC15 contact ratings (e.g AC solenoids): 16A@24Vac 5A@230Vac, 4A@400Vac
• DC13 contact ratings (e.g. DC solenoids): 4A@24Vdc
• Suitable fuse rating gG-10A/500V
