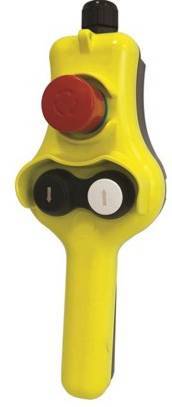

2 x Pushbuttons each with 2-speed NO contacts + 1 x NC on E-Stop

• Ideal for small hoists and other machines where an Emergency-Stop is needed
• Includes nylon compression gland M20
• Mechanical interlock between buttons
• Standard buttons are up-arrow/ down-arrow
• EStop is fitted with 1 x NC contact

Our HP03 features:

• Easy wiring and installation
• Spring cage terminals
• Rugged double-insulated enclosures in self-extinguishing thermoplastic
• Sealed to IP65
• Standard click-on contact blocks - up to 3 contacts per button
• Contacts with 10A (thermal) rating, 690V insulation voltage
• NO contacts are slow-break, double-gap, self-cleaning
• NC contacts are positive break so suitable for Emergency-Stop use (EN418 etc)
• AC15 contact ratings (e.g AC solenoids):  10A@24Vac  5A@230Vac, 4A@400Vac
• DC13 contact ratings (e.g. DC solenoids): 2A@24Vdc
• Fuse rating gG-10A/500V
